ESEC Repair Service

Our ESEC services are including installation, training, service contract, and part repair.

ESEC2006 ESEC2007 ESEC2008

Available part list to repair

Part Number Description

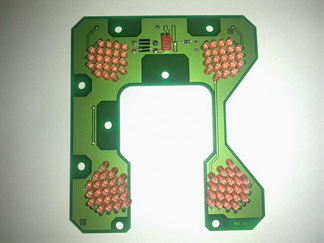

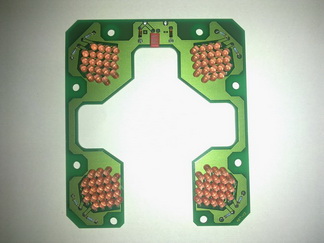

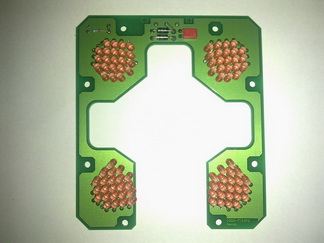

1000-7187 INDIRECT ILLUMINATION PVI RED FLASH

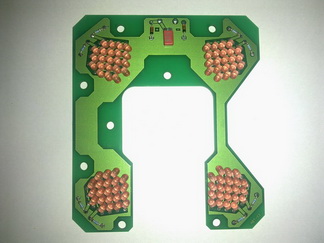

1000-7205 INDIRECT ILLUMINATION BVI/QCTV RED FLASH

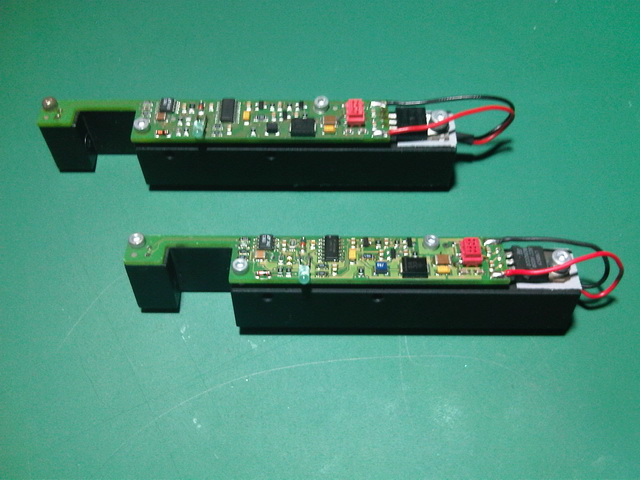

1000-8501 SMALL DIE SENSOR D161 CPL.
1000-8502 SMALL DIE SENSOR 2 D161 CPL.

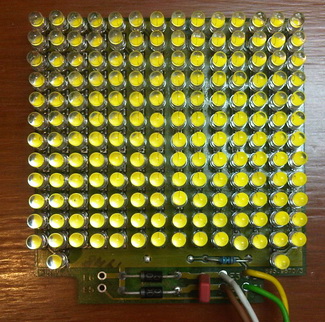

1001-3772 DIRECT LED BVI/QCTV/PVI WHITE FLASH
16.41.111 SUPPLY UNIT UHI 05010 6 V/8 A
16.41.122 SUPPLY UNIT WRP-36SX, 36 V/13 A
16.41.123 SUPPLY UNIT WRF-24SX, 24 V/14 A
16.41.124 POWER SUPPLY 5-7 VDC
16.41.130 SUPPLY UNIT 6 V/6 A,SMP/LC/40
16.41.135 SUPPLY 24 V, 36 V,12 V, 5 V 400 W
16.41.139 POWER SUPPLY 12 VDC 3 A
16.41.140 POWER SUPPLY 24 VDC 1.5 A
16.41.141 POWER SUPPLY 24 VDC 2.5 A
16.41.146 POWER SUPPLY 120 VAC/48 VDC/3 A
190.1450.1 PCB-TRAFO 6VA 19,5V 0,2A
190.2532.1 SERVO PACK CPCR-FR01RB-T3L
190.3211.1 VME-PC HD EXM-MX500
190.3231.1 SERVOPACK YASKAWA DR2-04 ACP-V
190.3235.1 SERVOPACK BALDOR DBS102-AAW
210.1429.1 POWER SUPPLY 24V 8A
210.1431.1 SWITCH REGULATOR 5V 10A     POWER SUPPL
210.2081.1 POWER SUPPLY  36V 8A
210.2082.1 POWER SUPPLY  24V 8A
210.2830.1 LINEAR MEASURING SYSTEM MSA6702 50 MM
210.2834.1 LINEARMESERUMENT MSA6702 50MM
210.2872.1 POWER SUPPLY CA400-5 12C-12C
402.3771.0 PWR SUPPLY 24 V/5 A SCHROFF
402.3881.0 SBMC 2 MHZ STEPMOTOR CONTR 3003
402.3936.1 PCB SBMC
402.4171.1 PCB WAFER SAW IN/OUTPUT
402.4196.0 OUTPUT PCB AO24
402.4696.0 PCB Y-SLIDE BASIC MACH 8002
402.4701.0 PCB X-SLIDE BASIC MACH 8002
402.4936.0 SBMC WITH 2K RAM HP 12 K
402.6586.0 2-SIDE PCB, DIGITAL DISPLAY ADP
403.0005.0 INPUT PCB EOV 32/8
403.0031.0 INPUT PCB NR 1 ADP
403.0032.0 INPUT PCB NR 2 ADP
403.0033.0 SBMC 1 MHZ WITH 2716-TYPE EPROM
403.0036.0 PCB W COMP BASE PLATE
403.0040.0 ANALOG SENSOR BOARD  W COMP ADP
403.0042.0 SENSOR CONNECTION PCB W COMP
403.0089.0 PCB DRIVER PRE CENT
403.0111.0 CENTER SENSOR PCB 0.4
403.0117.0 MULTISCRUB + SIGN. COND PCB
403.0147.0 3A STATION DRIVER PCB
403.0169.0 SBMC 1 MHZ 2732 EPROM
403.0184.0 PREFORM DISPENSER PCB
403.0207.0 CORNER SENSOR PCB
403.0210.0 DC MOTOR DRIVER PCB
403.0220.0 ADP DISPLAY PCB
403.0227.0 12 VDC SUPPLY ADP DISPLAY BOARD
403.0228.0 SBMC 2 MHZ SM CONTR 3002 Z-A
403.0229.0 CENTER SENSOR PCB 1
403.0233.0 SENSOR CONTR PCB CTR 83/A
403.0239.0 SCRUB MOTOR DRIVER 2 PCB
403.0309.0 L/H INTERFACE DRIVER PCB WITH COMP
403.0310.0 SBMC 1 MS RESET (402.3936.1)
403.0336.0 PCB ZZ DRIVE
403.0338.0 ANALOG SENSOR BOARD
403.0348.0 OPERATING PANEL 8003
403.0390.0 PCB W COMP H2 VALVE
403.0401.0 PCB W COMP TAPE APPLY 1
403.0402.0 PCB W COMP TAPE APPLY 2
403.0403.0 PCB W COMP TAPE APPLY 3
403.0461.0 LIFT PCB WITH COMPONENTS
403.0462.0 X-PRINT W COMP
45.00.878 MIB BOARD
45.00.879 X-AXIS BOARD
45.00.880 AMP POWER BOARD
45.00.881 Y-AXIS BOARD
45.00.935 X-AMPLIFIER
45.00.936 Y-AMPLIFIER
45.00.943 AUX BOARD KPL.
45.00.945 MIB BOARD INSERT
45.00.963 CONTROLLER BOARD
48.09.141 VPIO BOARD IMH
612.003 PCB W COMP I/O G-64
613.010 2-SIDE PCB W COMP
613.013 PCB WITH COVER
613.025 PCB W COMP HS INDEXER
613.037 PCB W COMP HS INDEXER HIGH CU
613.039 PCB WITH COVER APLF
614.020 2-SIDE PCB, W COMP MOD CONTR
614.022 PCB W COMP DUAL LIGHT BARRIER
620.003 PCB W COMP SINT G-64
620.003.01 PCB W COMP SINT G-64 "/02
620.005 PCB W COMP COPY PROTECTION
621.003 PCB W COMP RAM G-64
621.003.01 PCB W COMP RAM G-64 "/05
623.003 PCB W COMP PIO-G64
627.0024 5PH-DRIVE II STANDARD E1
627.0025 5PH-DRIVE II HIGH-TORQUE E1
627.0026 5PH-DRIVE II STANDARD E2

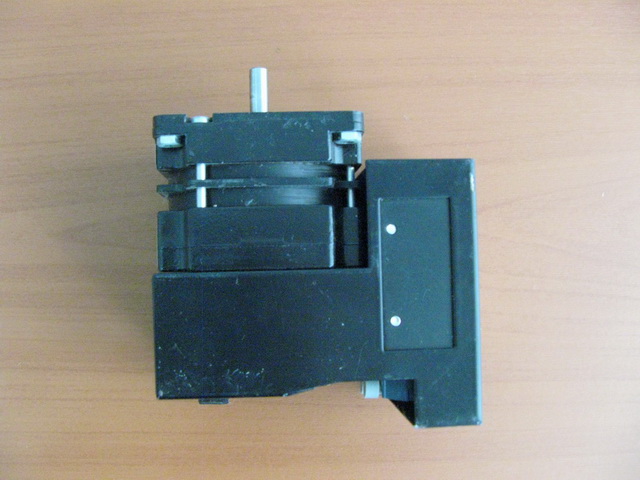

627.0027 5PH-DRIVE II HIGH-TORQUE E2

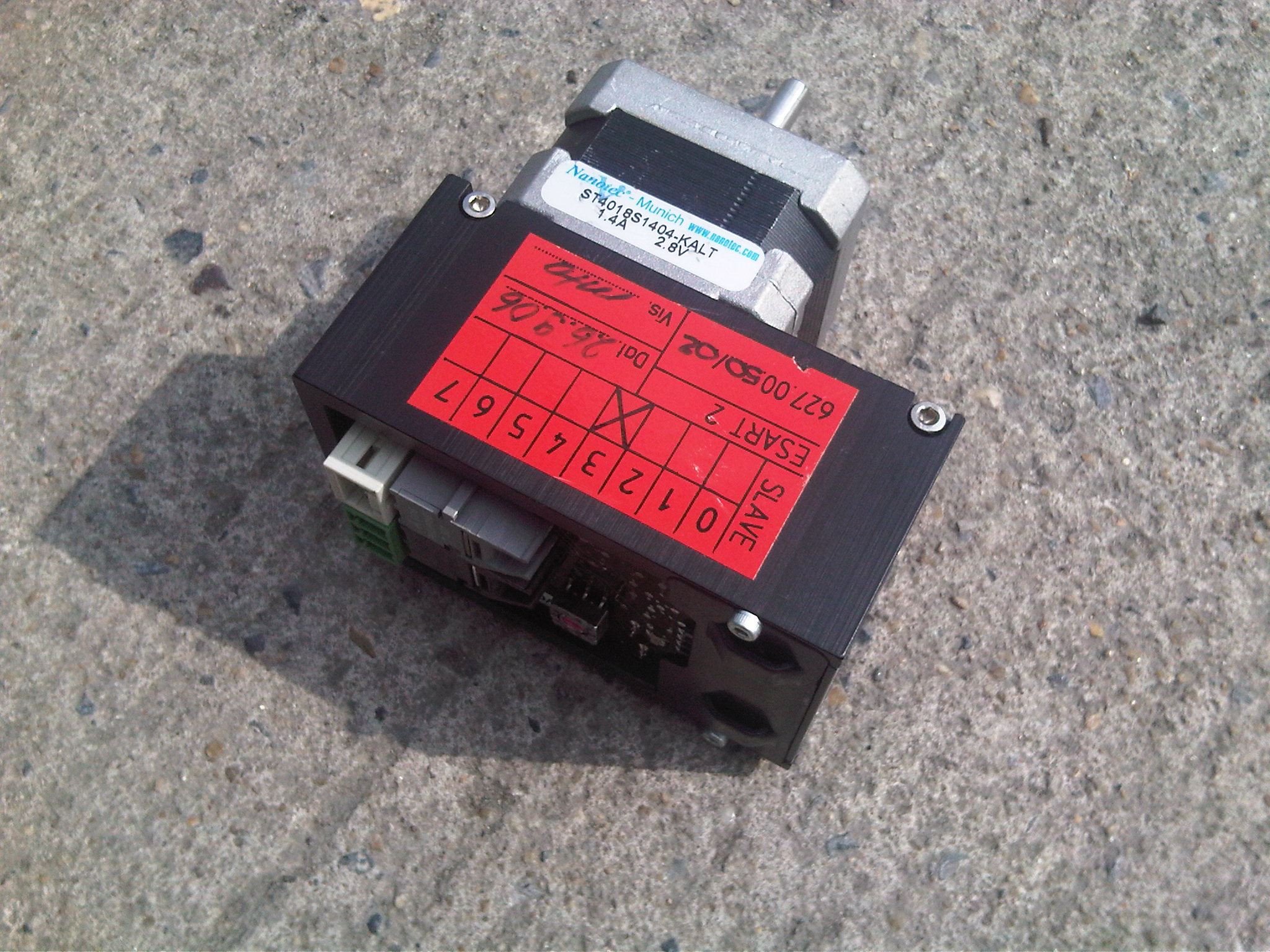

627.0050 2-PH MINIDRIVE HIGH TORQUE E2
627.0051 2-PH MINIDRIVE HIGH TORQUE E1
627.021 5-PH DRIVE WITH FLEX PCB
627.022 5-PH DRIVE WITH FLEX PCB
627.180 PCB W COMP DC/DC
627.181 PCB W COMP FLEX.
627.200 PCB W COMP CONNECTION
627.201 PCB W COMP OUTPUT STAGE
627.202 PCB W COMP LOGIC
628.020 PCB W COMP VME CPU 00

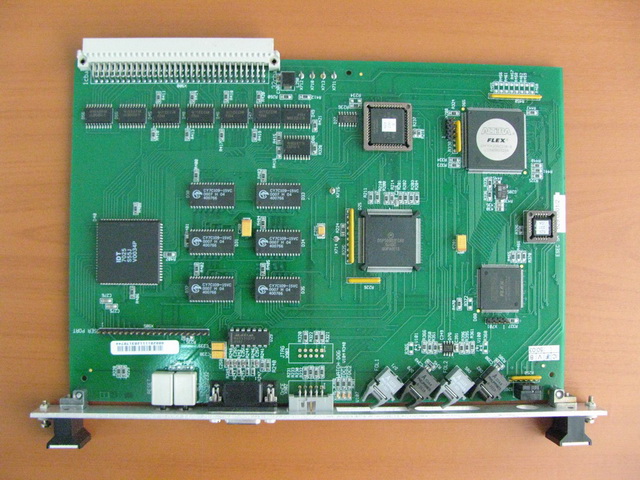

629.0001 VPIO 56
629.181 PCB W COMP VPIO56
629.184 PCB W COMP VPIO56E2
629.188 PCB W COMP VPIO56E1
631.0002 HIFG58 SLAVE
631.181 PCB HIFG57/FOR SPARE 631.182
631.182 PCB W COMP HIFG57 (WB)
631.183 PCB W COMP HIFG57-2MB
631.185 PCB W COMP HIFG57-B
631.186 PCB W COMP HIFG58 VGA
631.189 HIFG58 EGA
631.192 PCB W COMP SLAVE HIFG58
631.195 PCB W COMP ADAPTOR HIFG57-58
632.180 PCB W COMP16-PORT I/O  PCB UNIVE
633.0929 PCB W. COMP. SAFETY CONNECTION
633.0930 PCB E2 SAFETY COVER
634.0001 VCPU 16MHZ
634.0901 PCB W COMP VCPU00DE FULL
634.0902 PCB W COMP VCPU00DE 16MHZ
660.0900 PCB W COMP FOL COUPLING
660.0903 PCB W COMP DIGITAL
660.0907 PCB W COMP CONVERTER EXT BCR
660.0910 PCB MOD CLAMP
660.0912 PCB W COMP SV70 INTERFACE
660.0920 PCB W COMP CLAMP
660.0922 PCB W COMP CONNECTION CLAMP  PRINT
660.0940 PCB W COMP GRIP SENSOR CONNECTOR
664.0900 PCB W COMP SAFETY POST
664.0901 PCB W COMP SAFETY CONNECTION
680.180 PCB W COMP USER MOD INTERFACE
690.030 MOTHERBOARD WITH COMP
690.032 MOTHERBOARD WITH COMP
690.055 PCB W COMP TERMINAL
690.056 PCB W COMP SWITCH REGULATOR
690.181 PCB W COMP TERMINAL LCD
690.920 MOTHERBOARD W/O COMP
690.930 MOTHERBOARD W/O COMP
691.180 PCB W COMP SUPPLY
692.0900 PCB W COMP ADP LED CONNECT.
692.181 MOTHERBOARD VME WITH COMP
692.182 POWER MOTHERBOARD W COMP
693.160 OPERATING PANEL
693.182 PCB W COMP KB SWITCH
693.183 PCB BACKPLANE W COMP
693.187 PCB COMP M/C MONITOR
693.188 PCB W COMP WITH KB SWITCH
693.500 VME-PC REPLACED BY 693.505
693.501 VME-PC HARDDISK
693.504 VME-PC RS232
693.505 VME-PC
694.0001 PCB PIB WD 2007
694.0002 PCB COMPL. PIB-BH 2007
694.0005 PCB PIB LOC LDR
694.0006 PCB PIB WT-PERI

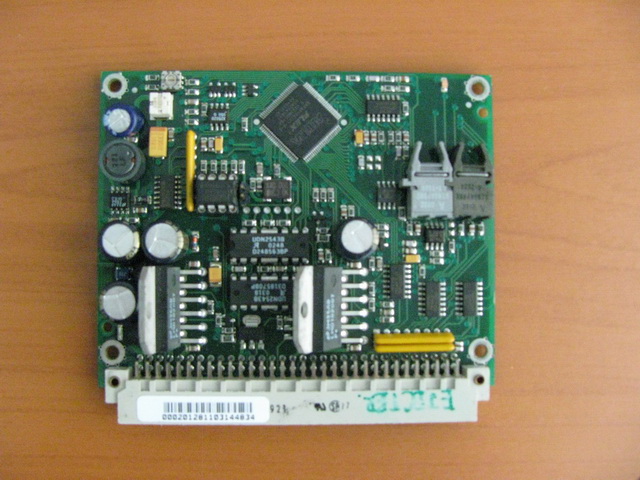

694.0053 PIB DEFMOT E2
694.0055 PCB W COMP SENSORPRINT MPPM
694.0900 PCB W COMP PIB
694.0902 PCB W COMP BH CONNECTION
694.0907 PCB W COMP CONNECTION LOADER
694.0909 PCB W COMP WT PIB-CONNECTION
694.0910 PCB W COMP MH2-CLAMP-CONN.
694.0911 PCB MH PLATFORM
694.0912 PCB W COMP DEFMOT PIB-CON
694.0915 PCB W COMP LED-ILLUM. PIB-CON  PCB
694.0916 PCB W COMP PUSHIN CONNECTION
694.0920 PCB W COMP PIB II
694.0930 PCB W COMP ADA BOARD
694.0931 PCB W COMP CONNECTION ADA
694.0932 PCB W COMP SERVO-ADA-CONNECTI  PCB
694.0940 PCB W COMP PRIO
694.0941 PCB SENSOR LOGIC 6I/4O
694.0950 PCB W COMP PIB MODIFIZIERT
700.170 PCB W COMP SERVO INTERFACE
700.172 MOTHERBOARD WITH COMP
700.173 PCB W COMP D/A SERVO INTERFACE
700.220 PCB W COMP RS 232
700.384 PCB W COMP Y-W HEATER
700.385 PCB W COMP HEAT CARTR DISTR
700.495 PCB W COMP SERVO INTERFACE 2
700.527 PCB W COMP SUPPLY DISTR
700.540 PCB W COMP POWER DISTRIBUTION
700.541 PCB W COMP TEMP MONITORING
702.107 SERVOPACK
704.0150 VME-RACK 2 2008
704.0901 PCB W COMP CONNECTION HLPP  PRINT B
704.0902 PCB W COMP MC-MONI CONN.
704.0991 PCB W COMP POWER UNIT 2
711.239 PCB W COMP ENCODER
711.242 PCB W COMP MONITORING
711.245 PCB W COMP SUPERVISION

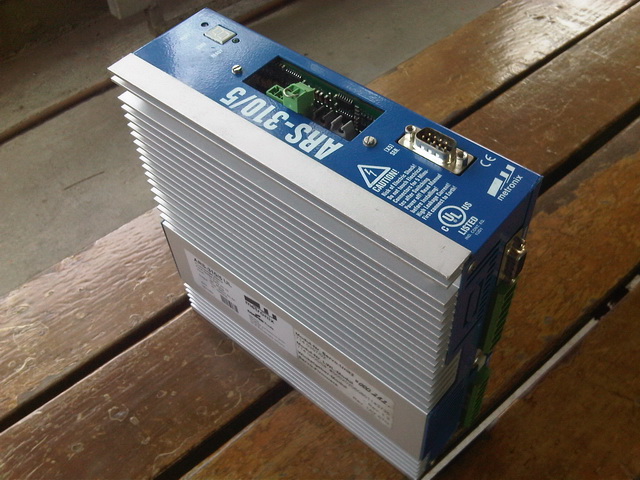

714.0304 SERVO UNIT2008
721.271 PCB WITH COMP
722.1126 PCB COVER
722.1253 PCB W COMP H2-VALVE APLF
730.1040 2-WAY CENTERING SENSOR F-BGA
730.1105 2-FOLD CENT SENSOR
730.1159 POWER AND LOGICBOARD PI SBGA
730.1160 POWER AND LOGICBOARD PI
730.1162 POWER AND LOGICBOARD
730.1180 PCB W COMP POWER PI
730.1181 PCB W COMP LOGICBOARD PI  PCB LOGIC
730.1182 PCB W COMP CONNECTION PI
730.1183 PCB W COMP CLAMPS CON FIX 2
730.1184 PCB W COMP CLAMPS CON MOVE 2
730.1185 PCB W COMP MOT CENT SENSOR 2
730.1188 PCB CONNECTOR
730.1189 PCB W COMP PUSH-IN PI LONG
730.1625 PCB W COMP DOWN SET SENSOR PRINT BE
730.182 MOTOR DRIVER PCB WITH COMP
730.183 PCB CENTER SENSOR W COMP
730.184 PCB W COMP DOWNHOLDER CONN
730.185 PCB W COMP CLAMPS CONN FIX
730.186 PCB W COMP CLAMPS CONN. MOVING
730.187 PCB W COMP PUSH-IN CONN. FIXED
730.188 PCB W COMP PUSH-IN CONN MOVING
730.189 PCB W COMP LASER SENSOR
730.190 PCB CLAMPS DRIVER WB
730.192 SIGNALS PI WB PCB W COMP
730.193 PCB W COMP PI-YSHIFT
730.194 PCB MOVING CLAMPS PI WB
730.195 PCB CLAMPS DRIVER SHORT PROTECT
730.197 PCB W COMP MOT CENT SENSOR 1

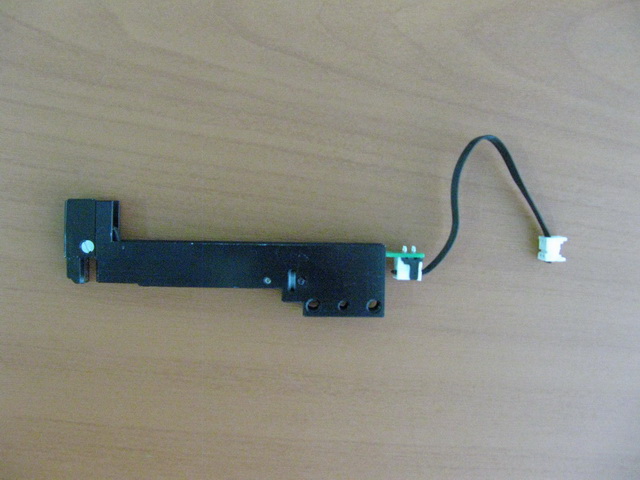

730.198 PCB W COMP LASER SENSOR
730.7181 PCB W COMP PUSH-IN

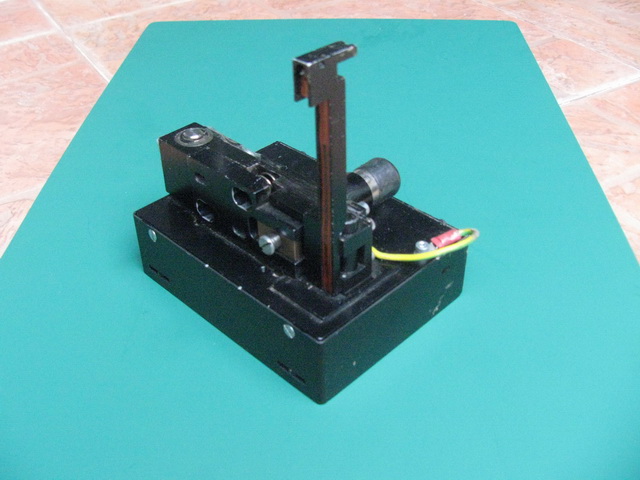

731.0120 Centering Sensor

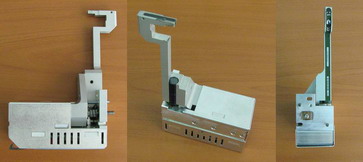

731.0047 MCS2 2008XP

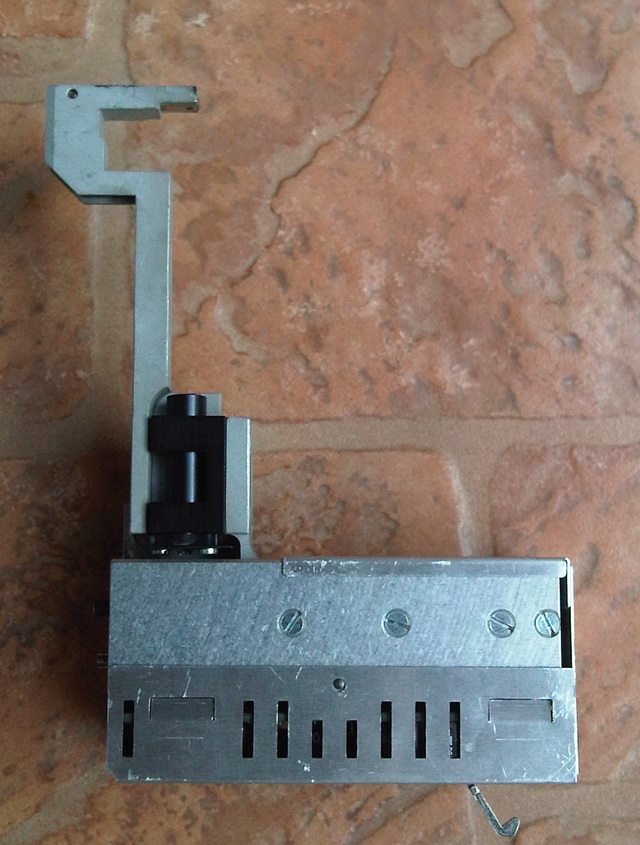

731.0322 MCS 2008 XP
731.0329 MCS-CAST VERSION RAIL
731.0330 MCS-CAST VERSION
731.0335 MCS SC-PI CAST VERSION
731.0608 PCB CONNECTION CLAMP MOVE
731.0609 PCB CONNECTION CLAMP FIX
731.0614 PCB W. COMP. PIBP2 BACKPLANE
731.0615 REPLACED WITH 731.0650 PI SSH CONN.
731.0616 PCB W COMP CONN. PROCESS SUPPORT
731.0623 PCB CPL. PIB2 PI DOWNSET
731.0617 PCB W COMP PUSH-IN CONN. MOVE
731.0636 PCB W COMP VACUUM DOWNHOLDER
731.0900 PCB W COMP POWERBOARD
731.0901 PCB W COMP PI X-RANGE LOGIC
731.0902 PCB W COMP CENTER SENSOR
731.0905 PCB W COMP MCS CONTROL
731.0906 PCB W COMP MOTHERBOARD PI
731.0908 PCB W COMP CLAMPS CON. MOVE
731.0909 PCB W COMP CS MODUL SENSORLINK
731.0911 PCB W COMP POWERBOARD LOC
731.0915 PCB W COMP PI-L CONN MOVING
731.0917 PCB W COMP PIBP BACKPLANE
731.0924 PCB W COMP CLAMP CON. MOVE HL  PRIN
731.0925 PCB W COMP FIX CONN.
731.0926 PCB W COMP PUSHIN C. MOVE HL  PRINT
731.0928 PCB COMPL. PIDX ESART1 2007
731.0929 PCB COMPL. PIDC ESART1 2007
731.0931 PCB W COMP CLAMP CON. FIX HL
731.0933 PCB W COMP PUSHOUT CONNECTION
731.0955 PCB W COMP BACKBLANE PI 2007
731.0958 PCB PIDC ESART2
731.0970 PCB W COMP PIDCDC E2
731.0981 PCB W COMPCENTER SENSOR MODULE
731.0982 PCB W COMP MCS FOR SC
731.0986 PCB W COMP MCS SENSORLINK
731.0992 PCB W COMP CENTER SENSOR
731.0998 PCB W COMP SSH
735.0900 PCB W COMP HEAT CONTR LOGIC
735.0901 PCB W COMP HEAT.-CONTR.THERMO  PCB,
735.0902 PCB W COMP HEAT CONTR POWER
735.0903 PCB W COMP CURRENT MEASURING
735.0904 PCB W COMP INDEXER+STACK POWER
735.0905 PCB W COMP INDEXER CONNECTION  PCB
735.0907 PCB W COMP BACKPLANE SSI
735.0908 HEATER CONTROL UNIT SSI
735.0909 HEATER POWER SWITCH BOARD Z1-4
735.0910 HEATER POWER SWITCH BOARD Z5-8
735.0912 PCB W COMP JAM SENSOR
735.0913 PCB W COMP USER MODULE H2
735.0914 HEATER POWER SWITCH BOARD Z9-Z11
735.0915 PCB W COMP SSI POWER BOARD
735.0916 HEATER POWER SWITCH BOARD Z9-12
735.0917 PCB W COMP GAS MAIN VALVE BOA
736.0900 PCB W COMP DC-MOTOR DRIVE
736.0901 PCB W COMP AD-CONVERTER
736.0902 PCB W COMP LOC BACKPLANE
736.0906 PCB ASSY THERMOC HIGH TEMP.
737.2180 CENTERING
737.2230 CENTERING
737.2460 CENTERING
760.180 PLATFORM PCB
760.181 PCB, CLAMP
760.182 PCB SENSOR MULTICONN. W/COMP
760.183 PCB W COMP CLAMP CONNECTION
760.184 PCB W COMP CLAMP CONN
760.185 PCB W COMP CLAMP CONN GENERAL
760.187 PCB W COMP CLAMP CONNECTION
760.188 PCB W COMP CLAMP CONN
760.189 PCB W COMP TUNNEL BUFFER (WB)
760.190 PCB CLAMP CONNECTION
760.191 PCB W COMP
760.192 PLATFORM PCB
760.193 PCB W COMP MH1 MODIFICATION WB
763.0906 PCB W COMP Z-CONN RETROFIT
763.0909 PCB TOS PERI. ESART2
763.0916 PCB W COMP TOS Y-CONNECTION
763.181 SENSOR CONNECTION PCB
763.182 FIXED CONNECTION PCB
763.184 Y-CONNECTION PRINT W COMP
763.185 PCB TOS PERIPHERAL & SAFETY
763.186 TOS Y-CONNECTION & SAFETY
763.224 PCB ENCLOSURE
769.0902 PCB W COMP MAGNETIC SENSOR
769.0903 PCB W COMP CLAMP HORIZONT.MH2
769.0906 PCB CLAMP ESART2
769.0907 PCB W COMP PIB BUFFER
769.0915 PCB CLAMP CONNECTION TOP
769.1058 PCB PLATE
771.023 PCB BASE
771.031 PCB Y-CENTER
771.033 PCB X-CENTER SICS
771.064 PCB W COMP INTERFACE 2005-NCT
771.084 PCB WITH COMP
771.2000 PCB COVER
771.2001 PCB COVER XYM D210
771.2009 PCB COVER XYM D212
771.526 CENTERING
771.627 PCB BASE Y
782.061 PCB W COMP SENSOR HEAD
782.062 PCB W COMP EDGE SENSOR
782.063 PCB W COMP CORNER SENSOR
782.064 PCB W COMP INKDOT SENSOR
783.181 PCB W COMP RING LAMP 2
783.182 PCB W COMP FLEX RING LAMP
784.0900 PCB W COMP BCR SWITCHER     EQUIPPED P
793.321 PCB-X WAFER HANDLER
793.322 PCB W COMP Z-PCB WITH DRIVER
793.592 PCB A1 793.539
793.598 PCB A1 793.539
793.600 PCB A1 793.539
793.880 PCB WH X W/O COMP
793.890 PCB W/O COMP WH PERIPHERAL
794.112 2-SIDE PCB, W COMP
796.180 WT-PERIPHERAL     PCB WT-PERIPHERAL
796.181 Y-CONNECTION
796.183 PCB Z-CONNECTION
843.180 PCB W COMP DIE EJECT MOTOR XY
843.181 PCB W COMP DEFMOT HS
852.010 PCB W COMP AMPLIFIER
852.012 2-SIDE PCB, W COMP
853.0003 SMALL DIE SENSOR 2 CPL.
853.004 BEAM SENSOR 2005/2006 (SB 874)
853.007 BEAM SENSOR 2004 (SB 874)
853.015 PCB W COMP BEAM SENSOR 2005/6
853.016 BEAM SENSOR FOR 1" CHIP 87
853.017 BEAM SENSOR FOR 1" CHIP (2007
861.012 PCB W COMP MOTOR SCRUB
863.180 PCB W COMP SCRUB
863.181 PCB W COMP SCRUB (RACK)
864.180 PCB W COMP PREPRESS CONTR
864.298 PCB PLATE
866.0125 SERVO PACK
872.042 DIGITAL BONDHEAD 2 ASSY.
872.044 DIGITAL BONDHEAD 3 ASSY. 2006
872.048 DIGITAL BONDHEAD HOT ASSY.
872.049 DIGITAL BOND HEAD 4 HOT ASSY.
872.060 DIGITAL BOND HEAD 4 ASSY. 2007
872.0900 PCB W COMP BSBH ENC. (RACK)
872.0901 PCB W COMP BSBH LOGIC (RACK)
872.0907 PCB W COMP BSBH SUPPLY/ENC.
872.0908 PCB W COMP TOUCH DOWN 2
872.0909 PCB W COMP TOUCH DOWN
872.0913 PCB W COMP ENCODER
872.0918 PCB W COMP BSBH SUP/ENC 2
872.181 PCB EQUIPPED DIGIT. BONDHEAD
872.182 PCB ASSY DBH 2000INC
872.184 PCB ASSEMBLY DBH DRIVE/EXE
872.185 PCB ASSY DBH ENCODER
872.186 PCB ASSY BSBH SUPPL./ENCODER
872.188 PCB ASSEMBLY BSBH DRIVE/EXE
872.191 PCB W COMP THETA CORR 2
873.0900 PCB W COMP SENSORS FCBH
873.0901 PCB W COMP DBHC  PCB W COMP DBHC
873.6400 PCB CONNECT 873.0010
889.0907 PCB W COMP PSD2
889.0908 PCB W COMP PSD ADAPTOR
889.0909 PCB W COMP HEATER
889.0912 PCB W COMP FPD MOTORS E2
889.0913 PCB W COMP FPD MOTORS
891.185 PCB W COMP LINE GENERATOR COLOR
891.186 PCB W COMP PIGGY BACK LINE GENI
891.190 PCB W COMPLINE GENERATOR 2006 HR
892.180 PCB VGA-QC FOR SPARE 892.184
892.181 PCB W COMP VGA CONVERTER
892.184 PCB W COMP VGA-CONVERTER 10K
892.185 PCB W COMP VGA-MUX 10K
893.0900 PCB W COMP ILLUM./X-DRIVE
893.0902 PCB W COMP EQU. IQC CONNECTION
893.0903 PCB W COMP ILLUM./DRIVE IQC
895.0900 INDIRECT ILLUMINATION PVI RED
895.0901 INDIRECT ILLUMINATION BVI/QCTV RED
895.0902 PCB DIR.LED - B/PVI R
895.0903 PCBA DIR. LED WHITE - B/PVI
895.0906 PCB W COMP D-IQC CONNECTION
895.0920 PIB MZF/LED E2
901.186 PCB VCPU INTERF W COMP
901.190 PCB RS-232 VME-PC
905.0300 LASER SENSOR
905.0903 PCB W COMP BACKRAIL PI
905.0904 FIX CONNECTION PCB W COMP
905.0906 EJECTOR PCB W COMP
905.0907 SICL PCB
930.051 MVME 147-010 10MHZ CLOCK
930.052 MVME 147-010
930.053 MVME 147-022
930.054 MVME 147-022
931.050 VPIO     PCB VP1O PROGRAM I/O
931.051 VPIO RAM OBSERVER PRINT COMPL
932.050 PCB GRAPHIC BOARD HRG-4
933.050 VSIO     PCB VSIO
933.180 SI PG3302 PCB W COMP
933.181 VSIO-INTERFACE-PRINT W COMP
934.0002 VGA CONVERTER, 2-FOLD
934.1000 FRONT PANEL VGA CONVERTER
940.181 NEFO HV PCB W COMP
940.201 HV CONNECTION WITH CALE NEFO 3006
942.050 ACCO PCB
942.0900 ACCO PLWC W COMP
942.0903 ACCO 2+ W COMP
944.053 PI CHOPPER F/X
944.054 PI CHOPPER F/XX
944.180 CONTR PCB CHOP48 Z
944.181 POWER PCB
944.182 CONTR PCB CHOP48 PI
945.0011 CHOPPER-TRYX 150 XY
945.0012 CHOPPER-TRYX 150 Z
945.0013 CHOPPER, TRYX 150 PI
945.053 CHOPPER 150 XY F/X
945.054 CHOPPER 150 Z
945.061 CHOPPER XY XX-RANGE
945.182 CHOPPER 150 XY CONTR PCB W COMP
945.183 CHOPPER 150 XY POWER PCB W COMP
945.184 CHOPPER 150 Z CONTR PCB W COMP
945.185 CHOPPER 150 Z POWER PCB W COMP
947.060 PCB BOND PROCESS ANALYZER COM
947.184 PCB BPA2 UIC W COMP
948.0001 FOCO PCB W COMP
960.180 PCB VS-CAMERA INTERFACE
960.181 PCB VS-FRAME GRABBER
960.182 PCB VS-VISION PROCESSOR
960.182 PCB VS-CPU



ASM REPAIR SERVICE

Model: AB339
Item
Description
1 MBI DUAL STEPPER CNTRL B
2 MBI QUAD STEPPER CNTRL D
3 MBI QUAD STEPPER CNTRL B
4 WORKHOLDER I/O BOARD
5 WORKHOLDER CPU BOARD ASSy
6 BONDER CPU BOARD ASSY
7 SI BOARD
8 BONDER I/O BOARD
9 ADSP - 6809 X - Y SERVO
10 ADSP - 6809 B/H SERVO CN
11 MICROSTEPPING DRIVER 641
12 138KHZ DSP BQM BD ASSY
13 EFO BOX
14 MBI SINGLE SERVO CNTRL B
15 MBI SINGLE SERVO CNTRL B
16 SERVO AMPLIFIER MODEL 422
17 BOND STICK DETECTOR BOARD
Model: EAGLE339
Item
Description
1 MBI Dual Stepper CTRL Bd. ( ZE )
2 MBI Dual Stepper CTRL Bd. ( XE )
3 MBI Dual Stepper CTRL Bd. ( YE )
4 XYZ ADSP 2181 & 6109 SERVO BD. (XY)
5 XYZ ADSP 2181 & 6109 SERVO BD. (I)
6 XYZ ADSP 2181 & 6109 SERVO BD. (Z)
7 PC-BQM BD & ADSP 2181 BD
8 TEMPERATURE CONTROLLER MODULE
9 BONDER I/O BOARD
10 WORK HOLDER I/O BOARD
11 SOLENOID DRIVER BOARD
12 SPARK GENERATOR SG39
MODEL: EAGLE60
Item
Description
1 BQM Board
2 X-Table Board
3 X-Servo Board
4 Y-Servo Board
3 Z-Servo Board
4 SPARK GENERATOR SG40
5 SPARK GENERATOR SG50
6 Power Supply 24 V. (Model : LPS45)
7 Dual Step Board
8 Bonder I/O Board



BRANSON ULTRASONIC REPAIR SERVICE

DHA1000 ULTRASONIC CLEANER




CREST ULTRASONIC REPAIR SERVICE

6G-500-6-TW

ULTRASONIC GENERATOR



DIONEX IC CHROMATOGRAPH REPAIR SERVICE

DX120-MB MAINBOARD


OXFORD INSTRUMENTS REPAIR SERVICE

51-1100-104 INCA MICS S/C ASSEMBLY
Symptom: Voltage is out of range







And many more!

Plese feel free to contact us. We will return the part for free of charge if we can not fix your part. We provide 6 months warranty for all repair parts.






Products Highlight




Absotec Co., Ltd.
Copyright 2017 Absotec Co., Ltd. All rights reserved.
